L-Series Overview

A practical evaluation of Honda’s L-series, with a focus on Earth Dreams-era 1.5-litre engines. We compare naturally aspirated, turbocharged and hybrid applications, their service requirements and the mechanical differences that matter when buying used.

Honda L-Series mechanical diagram

Variants & Specs

L15B7 Turbo
  • Standard: 174 hp
  • Compression: 10.6:1
  • Turbo: Single-scroll
  • Fuel: 91+ Octane
L15B NA i-VTEC
  • Standard: 130 hp
  • Compression: 11.5:1
  • Valvetrain: DOHC
  • Direct Injection
L15 i-MMD
  • Atkinson Cycle
  • Efficiency: 40%
  • Motor: AC Synchronous
  • Combined: 151 hp

Reliability & Maintenance

Common Problems

  • Oil Dilution: Particularly in early L15B7 variants during cold-start short trips.
  • Carbon Accumulation: Direct-injection models may require walnut blasting every 100k km.
  • VTC Actuator Rattle: A common startup sound in high-mileage NA units.
  • Head Gasket Stress: Observed in heavily tuned forced-induction setups. Honda has recently launched an extended warranty for this issue. Most common in heavier vehicles such as the Accord and the CR-V, but does come up on the civic as well, especially when tuned.

Maintenance Tips

  • High-Quality Oil: Use 0W-20 fully synthetic oil strictly every 8,000 km.
  • Fuel Choice: Run 91+ octane for turbocharged variants to reduce knock risk.
  • Valve Clearances: Inspect and adjust every 150,000 km for NA and Hybrid models.
  • Coolant Flushes: Maintain thermal efficiency to protect aluminum block integrity.

Sources & References

  • Honda L-series history, turbo architecture and application codes: https://hondanews.com/en-US/honda-automobiles/releases/release-40b876fa88ce36bf41449f6e441f9b95-honda-15-liter-turbo-engine
  • 2017 Civic Si powertrain, specifications and transmission comparison: https://hondanews.com/en-US/releases/release-d98b90f025ba4b5cbc2f6399d9fe1b0f-honda-civic-si-overview
  • 2015 Fit powertrain specifications and trim/transmission pairings: https://hondanews.com/en-US/releases/2015-honda-fit-powertrains
  • 2017 Civic Coupe 1.5-litre oil capacity (specifications section): https://techinfo.honda.com/rjanisis/pubs/QS/AH/ATBG1717OG/enu/ATBG1717OG.PDF
  • 2017 Fit oil capacity (printed page 433): https://techinfo.honda.com/rjanisis/pubs/OM/AH/AT5A1717OM/enu/AT5A1717OM.PDF
  • 2013 Fit Hybrid i-DCD: https://global.honda. its/en/newsroom/news/2013/4130719aeng.html
  • 2020 Jazz e:HEV drive system: https://hondanews.eu/gb/en/cars/media/pressreleases/200684/all-new-honda-jazz-delivers-powerful-hybrid-performance-and-advanced-connectivity-3
  • 2020 Japanese Fit e:HEV oil capacity: https://www.honda.co.jp/ownersmanual/webom/jpn/fitehev/2020/details/136180090-14042.html
  • Honda oil-dilution update, December 2018: https://static.nhtsa.gov/odi/tsbs/2018/MC-10152402-0001.pdf

Efficiency Benchmark

The Earth Dreams L15 series achieves up to 40% thermal efficiency, leading the segment in fuel-to-power conversion.

Honda L-Series Engines

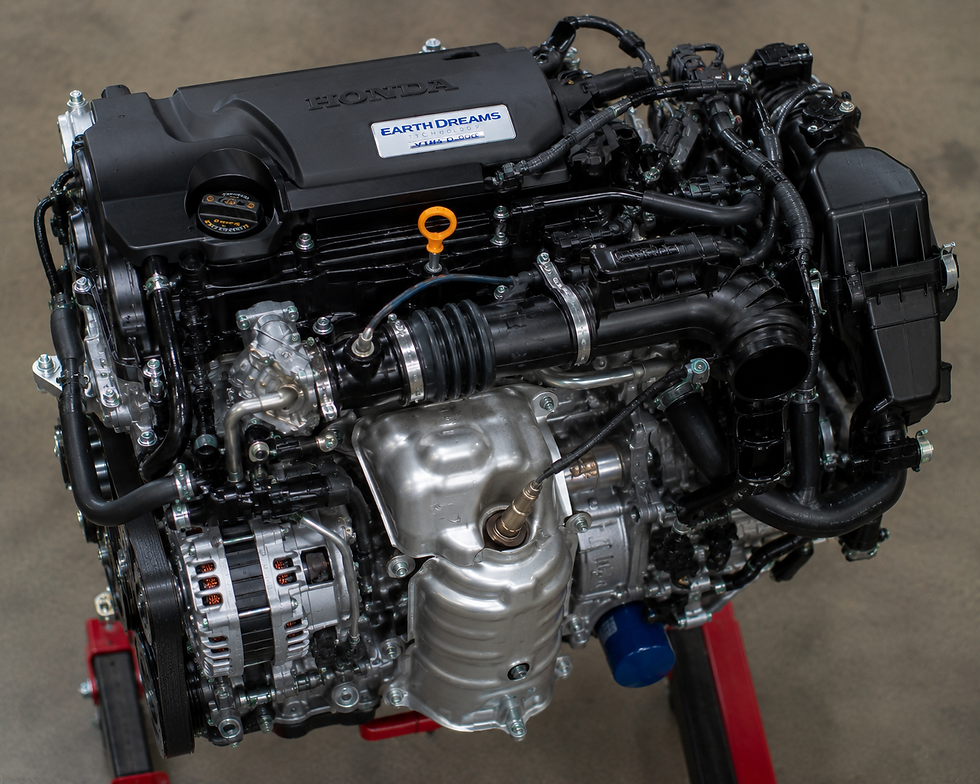

A comprehensive consultant evaluation of the Honda L-Series engine family, focusing on the Earth Dreams-era L15 architecture. We compare naturally aspirated, turbocharged, and hybrid variants to understand their long-term mechanical value and common failure points.

ChatGPT Image Jun 17, 2026, 02_33_56 PM.png

Engine Background

Honda’s L-series dates to 2001 and spans several generations of compact four-cylinder engines. Earth Dreams Technology describes a broader efficiency programme, rather than one engine specification. Earlier L-series engines and later L15B designs should not be treated as identical.



The Earth Dreams-era L15B brought a DOHC layout to applications such as the Fit. Fuel injection, compression ratio and valve control vary by application: the U.S. 2015 Fit uses direct injection and i-VTEC, while the original Civic L15B7 turbo uses dual variable cam timing without variable valve lift. Later turbo versions added VTEC in selected applications.



Hybrid models :. The 2013 Japanese Fit Hybrid combines a naturally aspirated 1.5-litre Atkinson-cycle engine with a single motor and seven-speed dual-clutch transmission. The 2020 Fit/Jazz e:HEV uses a two-motor system. These hybrid engines carry codes such as LEB;

Sources & References

  • Honda L-series history, turbo architecture and application codes: https://hondanews.com/en-US/honda-automobiles/releases/release-40b876fa88ce36bf41449f6e441f9b95-honda-15-liter-turbo-engine
  • 2017 Civic Si powertrain, specifications and transmission comparison: https://hondanews.com/en-US/releases/release-d98b90f025ba4b5cbc2f6399d9fe1b0f-honda-civic-si-overview
  • 2015 Fit powertrain specifications and trim/transmission pairings: https://hondanews.com/en-US/releases/2015-honda-fit-powertrains
  • 2017 Civic Coupe 1.5-litre oil capacity (specifications section): https://techinfo.honda.com/rjanisis/pubs/QS/AH/ATBG1717OG/enu/ATBG1717OG.PDF
  • 2017 Fit oil capacity (printed page 433): https://techinfo.honda.com/rjanisis/pubs/OM/AH/AT5A1717OM/enu/AT5A1717OM.PDF
  • 2013 Fit Hybrid i-DCD: https://global.honda. its/en/newsroom/news/2013/4130719aeng.html
  • 2020 Jazz e:HEV drive system: https://hondanews.eu/gb/en/cars/media/pressreleases/200684/all-new-honda-jazz-delivers-powerful-hybrid-performance-and-advanced-connectivity-3
  • 2020 Japanese Fit e:HEV oil capacity: https://www.honda.co.jp/ownersmanual/webom/jpn/fitehev/2020/details/136180090-14042.html
  • Honda oil-dilution update, December 2018: https://static.nhtsa.gov/odi/tsbs/2018/MC-10152402-0001.pdf
