THE ULTIMATE HONDA K-SERIES ENGINE GUIDE

Honda K-Series High Performance Engine

K20, K24 & Turbo K20C

Your technical hub for the DOHC i-VTEC family. Explore high-revving giants and turbocharged powerhouses known for tuning potential and reliability.

DOHC VTEC

TUNER READY

I-VTEC HUB

RELIABLE POWER

K-SERIES ARCHITECTURE

Defining Honda modern power

The Honda K-Series represents a monumental shift in powertrain engineering, serving as the definitive DOHC i-VTEC inline-four family for the modern era. Since its debut, this platform has redefined expectations for four-cylinder engines by blending high-efficiency fuel delivery with race-bred performance characteristics. Utilizing a stiff aluminum block and high-flow cylinder heads, the K-Series architecture is designed to handle extreme stress while delivering a incredibly wide and usable powerband across its various displacements. From the high-revving naturally aspirated 2.0L and 2.4L variants to the cutting-edge turbocharged K20C, the family offers a versatile range of choices for both OEM applications and aftermarket builds. What truly separates the K-Series from its predecessors is the sophisticated i-VTEC system, which combines Variable Valve Timing and Lift Electronic Control with Variable Timing Control (VTC). This allows the engine to continuously adjust camshaft phasing, optimizing intake flow for maximum torque at low speeds and unrestricted airflow at the redline. This duality makes the K-Series equally at home in a smooth-idling daily commuter as it is in a dedicated time-attack machine screaming past 8,000 RPM. Beyond the factory specifications, the K-Series has created one of the most robust aftermarket ecosystems in automotive history. Its modular design allows enthusiasts to mix and match components—such as pairing high-displacement bottoms with high-flow heads—to create custom power plants. With outstanding reliability and massive tuning potential that supports everything from mild street upgrades to thousand-horsepower drag builds, the K-Series family remains the gold standard for global performance enthusiasts who demand a perfect balance of engineering precision and brute force.

PLATFORM SCORE

9.8 / 10

TUNING POTENTIAL

9.9 / 10

K20 ENGINE CORE METRICS

K20 Edition

The Honda K20 power plant is a global benchmark for 2.0L performance. Celebrated for its rigid block design and legendary cylinder head flow, it has served as the heartbeat for various icons from the Civic Type R to the RSX. Providing a perfect technical base for both street and track enthusiasts, this engine platform continues to dominate the four-cylinder market through its peerless engineering. ​ Expected Service Life: 300,000–500,000+ km

Engine Size

1998 cc Displacement

Models

Type R, Civic Si, RSX

Peak RPM

8,000 - 8,600 Range

Air Intake

Naturally Aspirated System

Power Zone

5,800 - 8,200 Range

Oil Volume

4.7 - 5.0 L Capacity

ChatGPT Image Jun 17, 2026, 01_40_16 PM.png
ChatGPT Image Jun 18, 2026, 09_00_33 PM.png

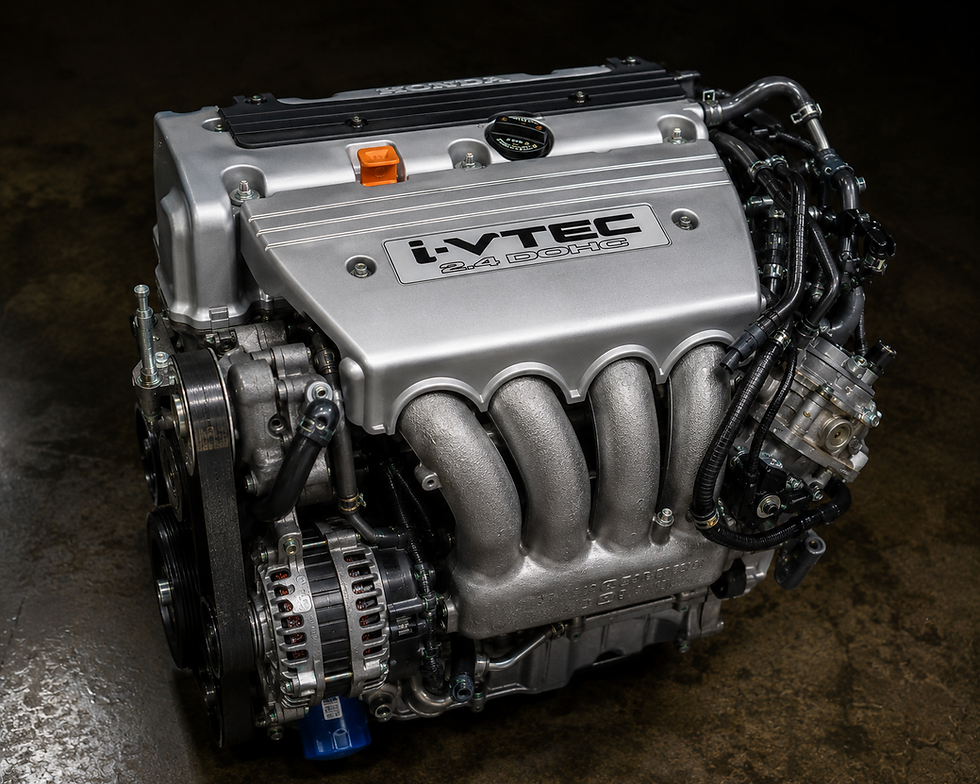

K24 VARIANT

The Torque King

The 2.4L variant is the heavyweight of the K-series, offering a massive stroke advantage for superior low-end grunt and a linear power delivery favored by tuners and daily drivers alike. ​ Lifespan: >350,000KM with ideal maintenance

Displacement

2354 cc

Induction

Naturally Aspirated

Typical Chassis
K24A2 / K24Z3 / K24W (Earth Dreams)

Acura TSX, Honda Accord, ILK, Element

4,500 – 7,100 RPM

Redline

7,100 RPM

Oil Capacity

4.2 Liters

Common Problems Matrix
Problem
Severity
Mileage

VTC actuator rattle

🟢 Minor

100k–250k km

Brief rattle on cold start. Very common.

Chain stretch

🟡 Moderate

200k+ km

Neglect causes timing errors/rattles.

Oil consumption

🟡 Moderate

Varies

Develops with age, often piston rings.

Solenoid leaks

🟢 Minor

120k+ km

VTEC gasket leaks; inexpensive fix.

Front crank seal

🟢 Minor

150k+ km

Age-related; straightforward repair.

Belt tensioner

🟢 Minor

150k+ km

Worn units create rattles or noise.

Carbon buildup

🟡 Moderate

100k+ km

Direct-injection variants only.

Cooling system

🟢 Minor

150k+ km

Pumps/thermostats eventually wear.

TURBOCHARGED

K20C Variant

The pinnacle of modern K-series engineering, the K20C1 brings direct injection and forced induction to the legendary platform, delivering track-dominant performance out of the box.

Displacement

1996 cc (2.0L)

Typical Chassis

Civic Type R (FK8/FL5)

Redline

7,000 RPM

Induction

Mono-scroll Turbocharger

Power Band

306 - 315 HP @ 6500 RPM

Oil Capacity

5.4 Liters (w/ Filter)

Common Problems
  • Heat soak issues during extended track sessions requiring cooling upgrades.
  • Direct injection carbon buildup on intake valves over 100k km.
  • High-pressure fuel pump sensitivity and related recall potential in early models.
ChatGPT Image Jun 18, 2026, 09_02_30 PM.png

Key Specs & Applications

Core data and reliability guidance for the Honda K-series family and K24A2 variants

Variant
Disp.
VTEC Type
Typical Chassis
Character
Common Issues

K20A2

2.0L

Performance

RSX Type-S (DC5)

High-rev, Aggressive

Tensioner rattle, 2nd gear grind

K20Z1

2.0L

Performance

RSX Type-S (05-06)

Refined, Linear

Synchro wear, VTC rattle

K20Z3

2.0L

Performance

Civic Si (FA5/FG2)

Balanced, Modern

VTC rattle, 3rd gear pop-out

K20A3

2.0L

Economy

RSX Base / Civic Si (EP3)

Efficient, Commuter

Camshaft galling

K24A2

2.4L

Performance

Acura TSX (CL9)

Torque-rich, Street

Timing tensioner, cam pitting

K24Z3

2.4L

Performance

TSX (CU2) / Civic Si (FB6)

Balanced, Modern

VTC rattle, oil consumption

K24A4

2.4L

Economy

Accord / Element / CR-V

Low-rev, Efficient

Exhaust cam wear, oil consumption

K20C1

2.0L

Turbo i-VTEC

Civic Type R (FK8/FL5)

Track-ready, Brutal

Heat soak, fuel pump recall

Displacement

2354 cc (2.4L)

Configuration

Inline 4-Cylinder

Valvetrain

DOHC i-VTEC, 16 Valves

Redline

~7,100 RPM

Compression Ratio

10.5:1

Induction

Naturally Aspirated

Block Material

Aluminum Block, Aluminum Head

Max Service Mileage

325,000 - 400,000+ km (Well-Maintained)

Reliability Risks & Ownership

Strong long-term reliability when oil changes are kept up; typical issues are often mileage-related.

  • Timing tensioner rattle at start up
  • Front crankshaft seal and minor gasket leaks
  • Oil consumption issues due to carbon buildup on ring lands
  • Low-oil level sensitivity during spirited use

Typical Repair Costs: $550 - $1,400 CAD per major service

Buyer Tip: Prioritize units with documented frequent oil changes using synthetic oil.

COMMON K SERIES PROBLEMS

A targeted diagnostic guide for K engine owners, highlighting critical maintenance-related failure points and reliability benchmarks validated by endurance build logs.

Tensioner Failures & Chain Stretch

Extended oil service intervals typically lead to timing chain stretching on high-mileage K-series. This can cause the chain to jump teeth, resulting in piston-to-valve contact and total engine loss.

Reliability Impact: High risk/engine failure; 160k km inspection required. Entirely preventable with frequent oil changes.

K24A2 Camshaft Pitting

Inadequate lubrication or neglected maintenance often causes premature galling on the intake camshaft lobes. Check maintenance history for oil grade and frequency before purchasing any used K block.

Reliability Impact: Significant performance loss; preventable with 5k oil intervals and proper oil pressure management.

VTC Actuator Rattle (Cold Start)

The variable timing control actuator frequently fails to lock internally, causing a brief grinding sound during dry/cold starts. While common i it is rarely catastrophic.

Reliability Impact: Low; primary annoyance. Replace during timing service to maintain optimal i-VTEC engagement.

Gasket & Seal Weepage

Standard K-series fatigue. Front crankshaft seals and valve cover gaskets are prone to minor leaks on high-revving platforms. Maintenance history showing regular seal replacements is a sign of a well-kept unit.

Reliability Impact: Low immediate risk; maintenance history correlation mandatory to prevent oil starvation during spirited use.

8/10

Power

Exceptional output potential with 200+ HP baseline and high i-VTEC engagement. Torque is strong throughout the midrange, with massive gains possible via performance cams or K20 head swaps.

How this K-series engine scores in our system

PERFORMANCE EVALUATION

9/10

Reliability

K24A2 internals are legendary for endurance. Exceptional long-life is guaranteed ONLY with strict cooling maintenance and high-quality oil. Tolerance for spirited use is high, but maintenance history is the most critical factor when buying used.

7/10

Ownership Cost

While maintenance parts are common, the cost of clean, high-performance K24A2 blocks and specialized swap components has risen steadily as quality supply decreases.
